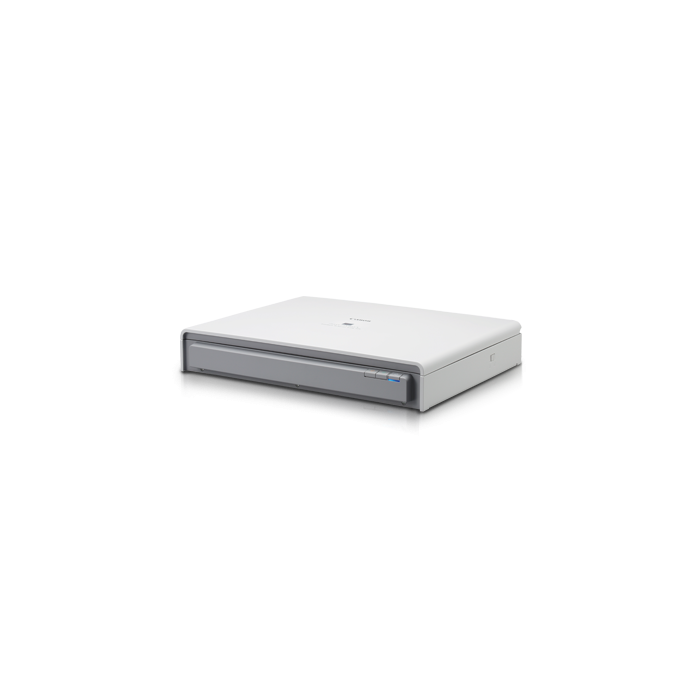

Flatbed Scanner Unit 201為選項配件之一，可配合佳能DR系列的文件掃描器運作，讓用家可輕鬆掃描比A4更大的文件。
*Flatbed Scanner Unit 201不能單獨使用，需配以佳能DR系列文件掃描器一起使用。
| Type | Desktop flatbed scanner |
| Scanning document size | Width: 297.4 mm |
| Length: 431.8 mm | |
| Scanning sensor | CCD |
| Light source | LED |
| Scanning side | Simplex |
| Scanning modes | Black and White, Error Diffusion, 256-level Grayscale, Advanced Text Enhancement II, 24-bit Color |
| Scanning resolution (primary scan lines x secondary scan lines) | 100 x 100dpi/150 x 150dpi/200 x 200dpi |
| 240 x 240dpi/300 x 300dpi/400 x 400dpi | |
| 600 x 600dpi | |
| Scanning speed * (Conditions : Core 2 Duo 3.0 GHz of faster CPU, 3 GB or more memory, A4 document size) 24-bit color |
600 dpi 9.0 sec. |
| 300 dpi 3.5 sec. | |
| 200 dpi 3.5 sec | |
| 150 dpi 3.5 sec. | |
| Scanning Speed * (Conditions: Core 2 Duo 3.0 GHz of faster CPU, 3 GB or more memory, LTR/A4 document size) B&W/Grayscale |
600 dpi 4.5 sec. |
| 300 dpi 3.0 sec. | |
| 200 dpi 3.0 sec. | |
| 150 dpi 3.0 sec. | |
| Interface | Hi-Speed USB 2.0 |
| External dimensions (W x D x H) | 571 mm x 436 mm x 96 mm |
| Weight (without AC adapter) | Approximately 8.5 kg |
| Power supply (using AC adapter) | DC 24 V, 2.2 A |
| Power consumption | Scanning: maximum 21 W |
| Sleep mode: maximum 3.1W | |
| With power turned OFF: maximum 0.3W | |
| Noise | Not more than 59 dB |
| Operating environment | Temperature: 10°C to 32.5°C |
| Humidity: 20% to 80% RH |
